Steve Stevens Ascender Platinum

Steve Stevens Signature Ascender Platinum
Steve Stevens’ Vision of Style and Versatility Brought to Life

The Steve Stevens Signature Ascender Platinum offers a sleek, performance-driven design that blends cutting-edge innovation with bold, versatile sound. Created in collaboration with legendary guitarist Steve Stevens, the Platinum delivers exceptional tone, modern aesthetics, and features tailored for the discerning musician.

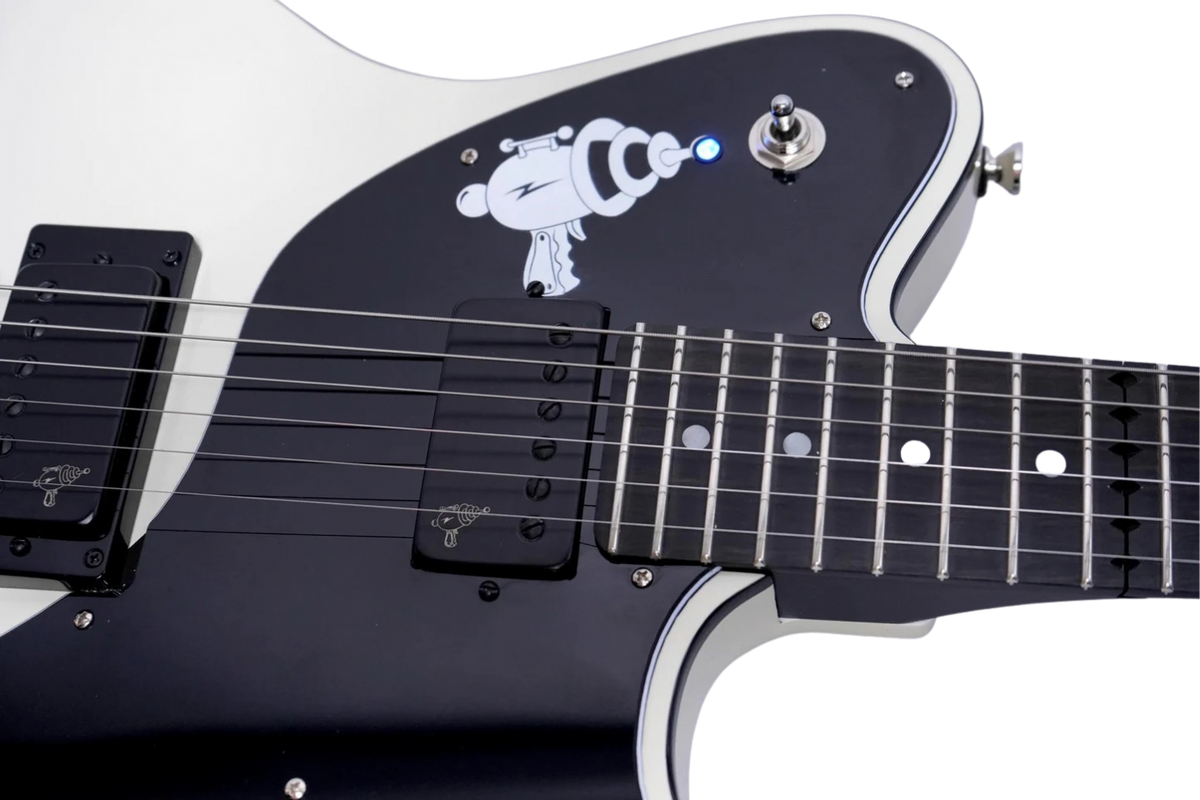

At its core are Bare Knuckle Ray Gun pickups, engineered to produce dynamic tones that respond with precision and clarity to your playing style. From warm, clean tones to powerful high-gain crunch, the Platinum adapts effortlessly to any genre or musical context. Coil-splitting functionality adds even greater versatility, allowing players to seamlessly switch between single-coil brightness and humbucker depth. The LED selector switch adds a bold visual element, lighting up in red, green, or blue to reflect your active pickup configuration.

Bezel tuners ensure precise and reliable tuning adjustments, while the master tone and volume controls with pull-pot splits provide complete control over your sound. The Ray Gun-engraved pickguard enhances the guitar’s bold and distinctive aesthetic, complemented by sleek dot inlays and a high-gloss finish.

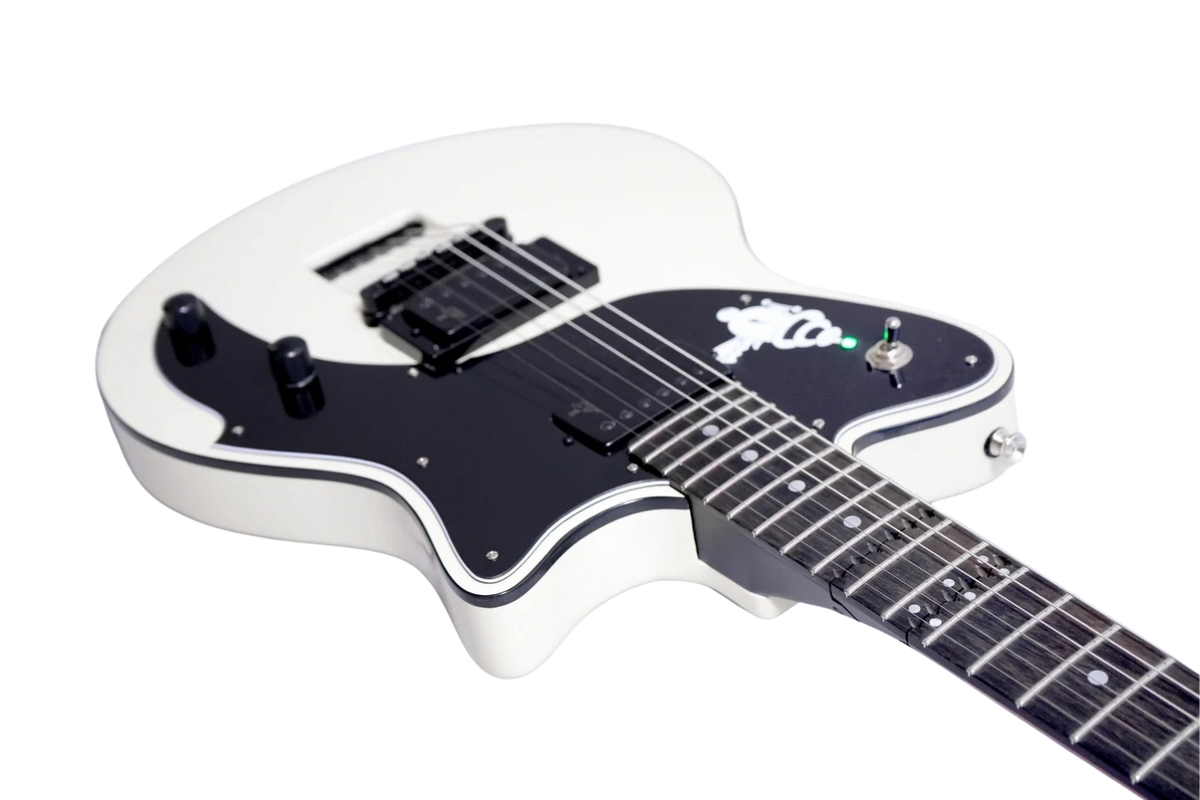

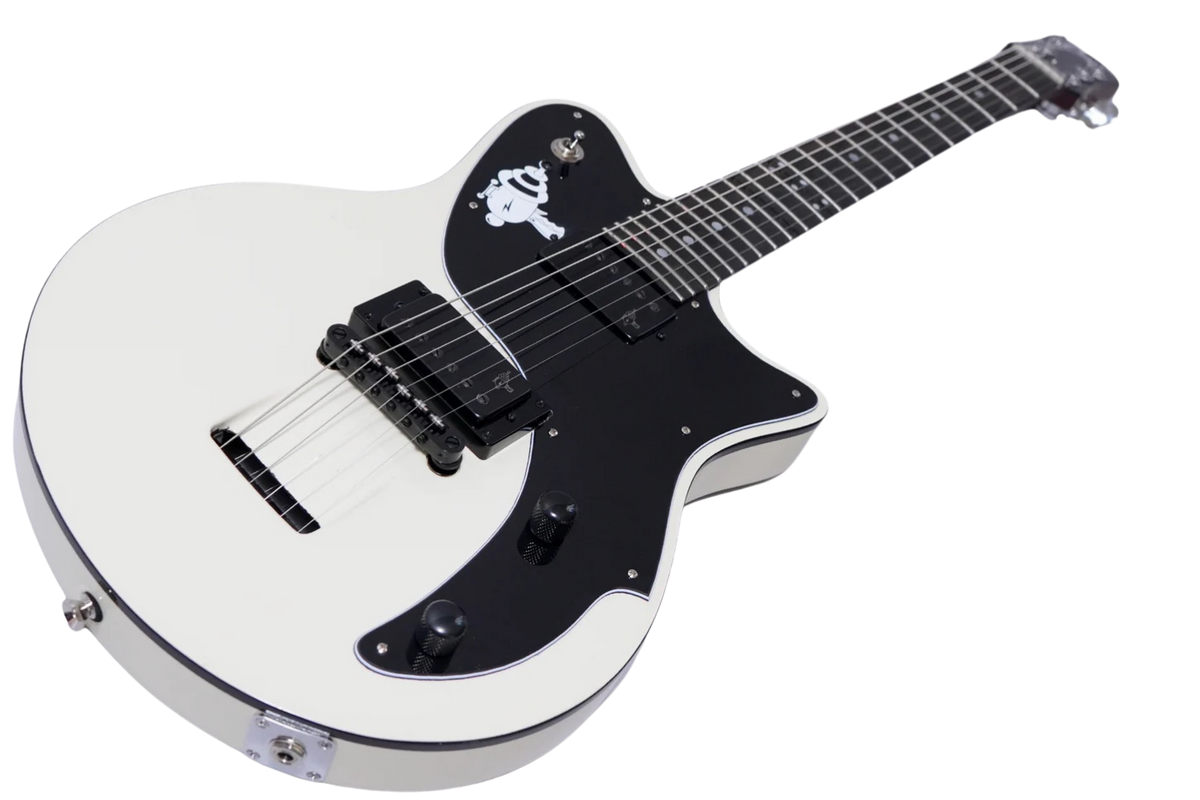

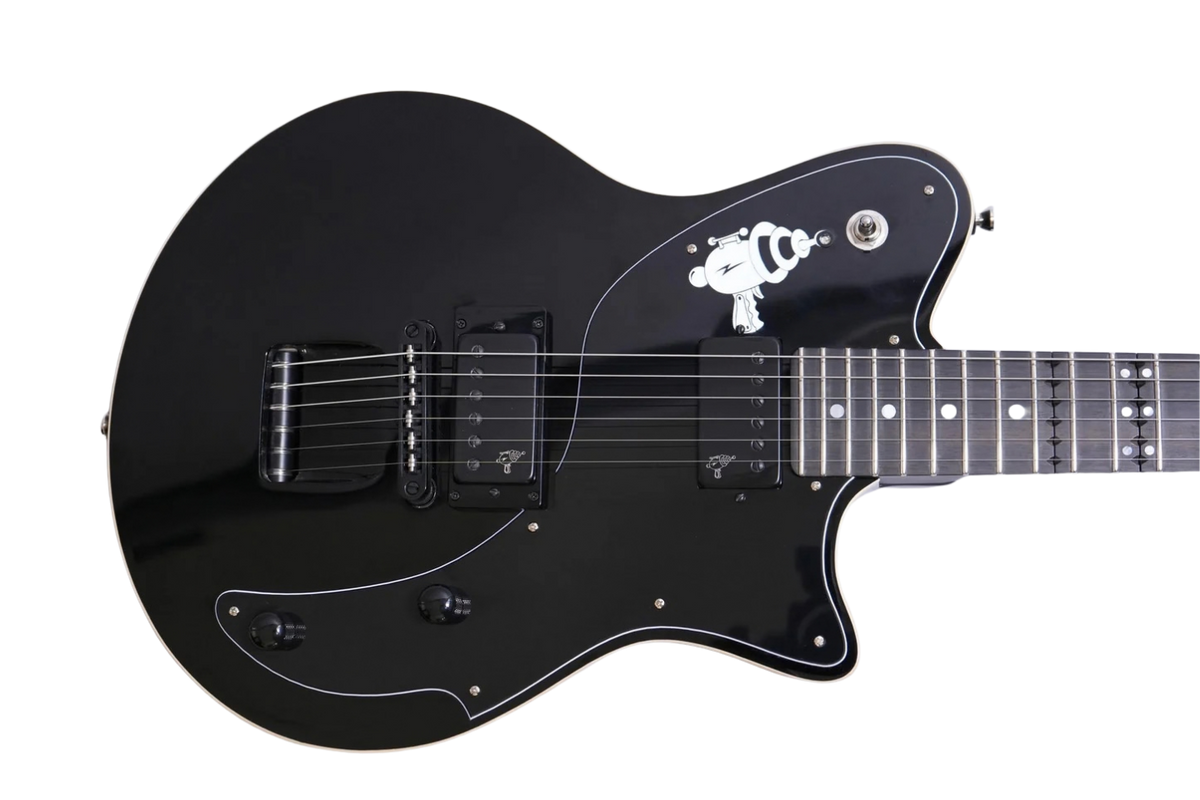

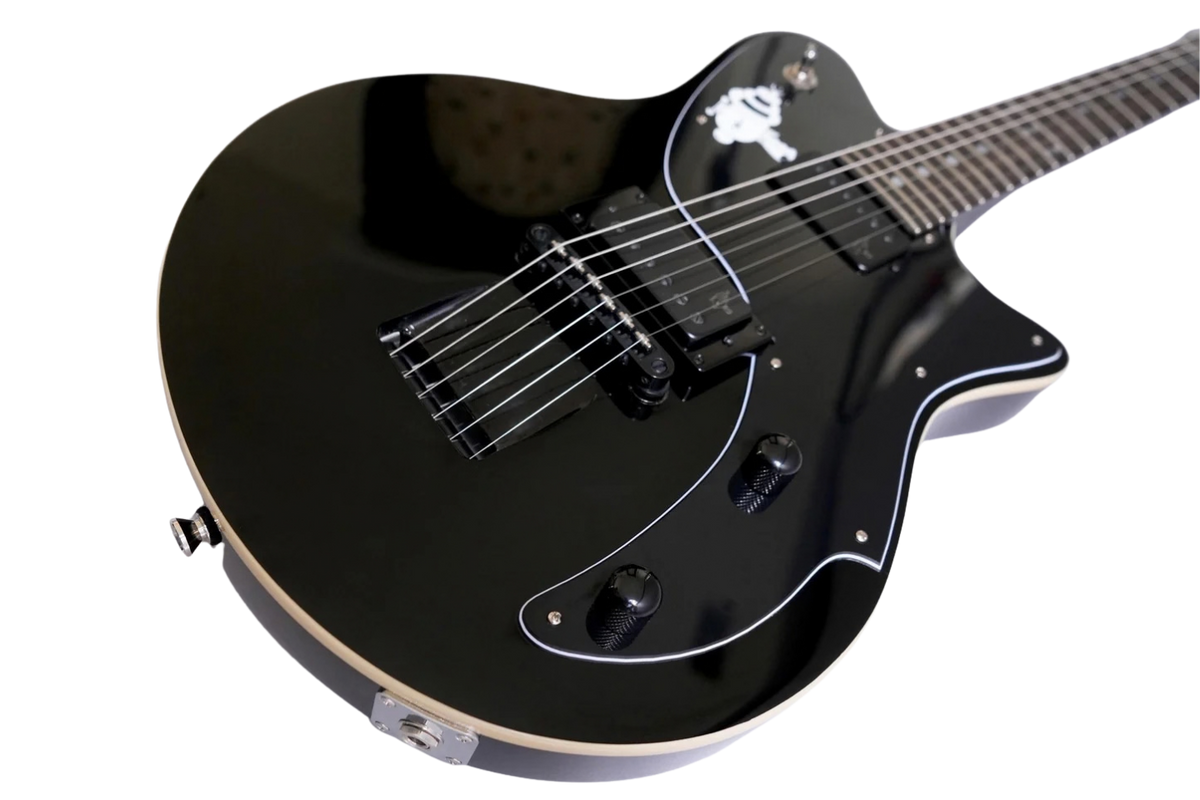

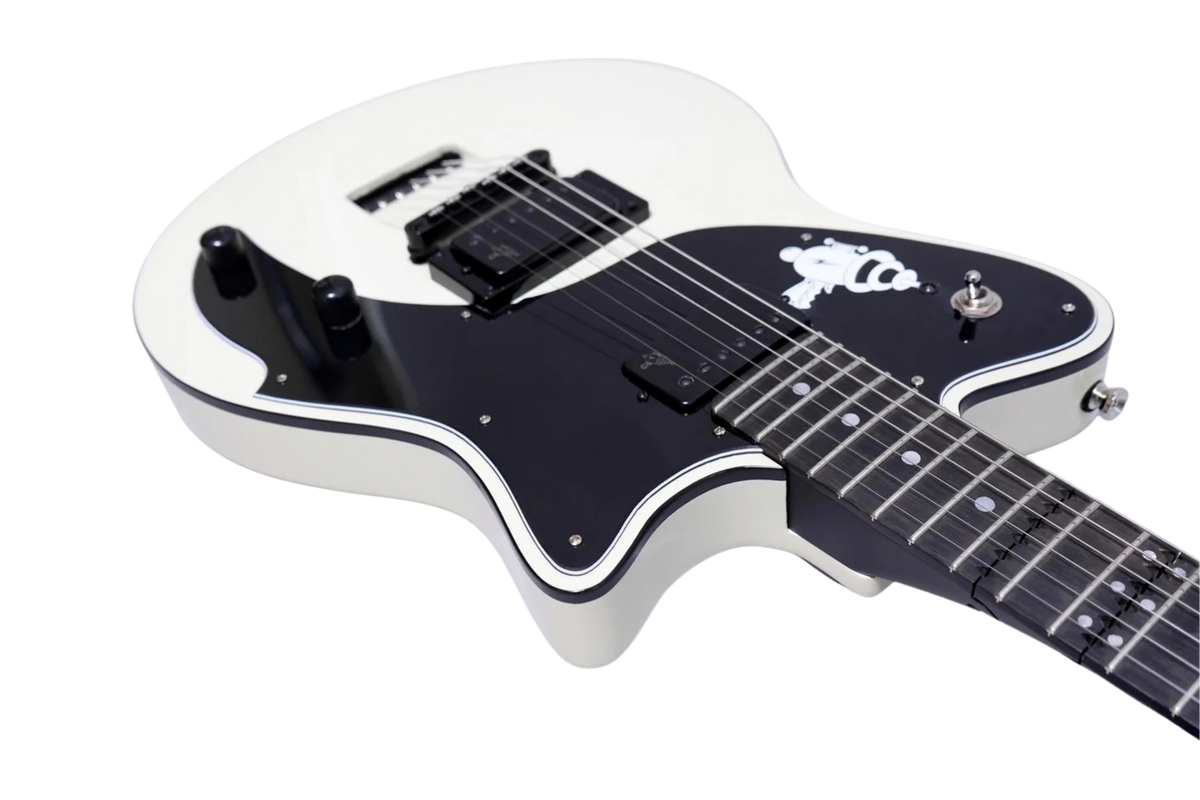

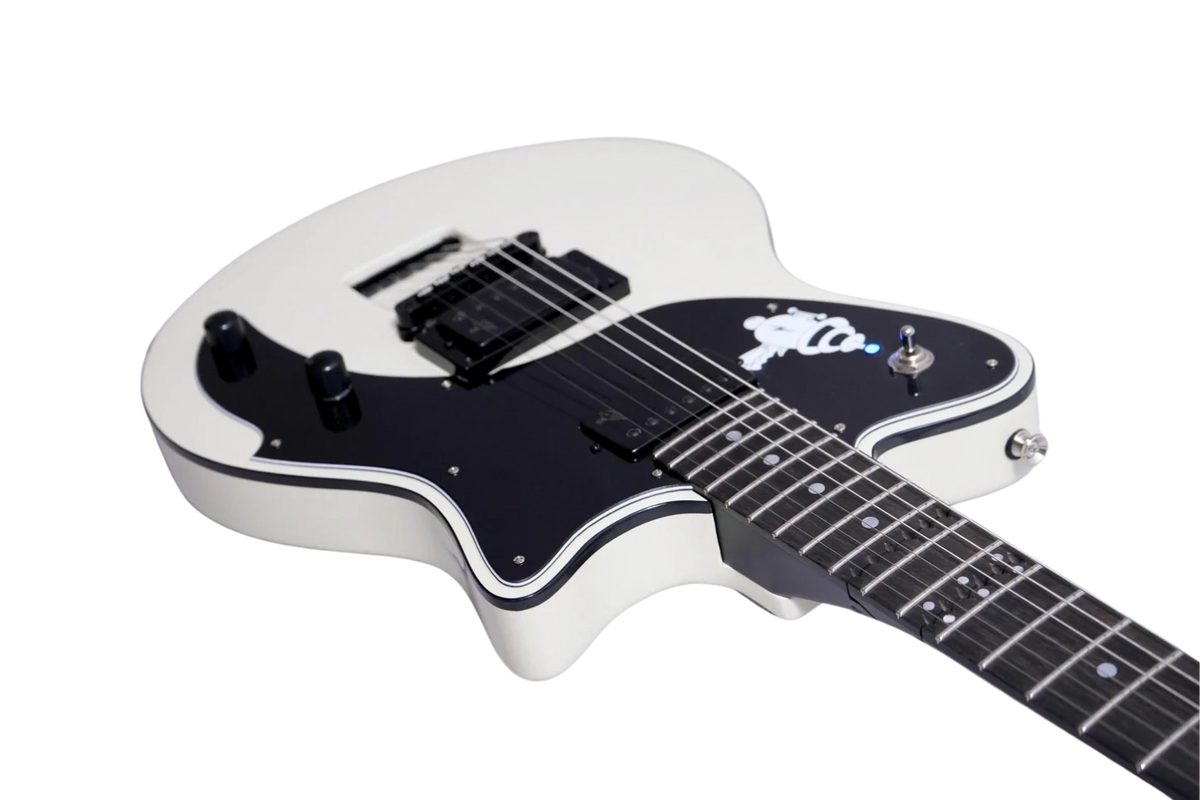

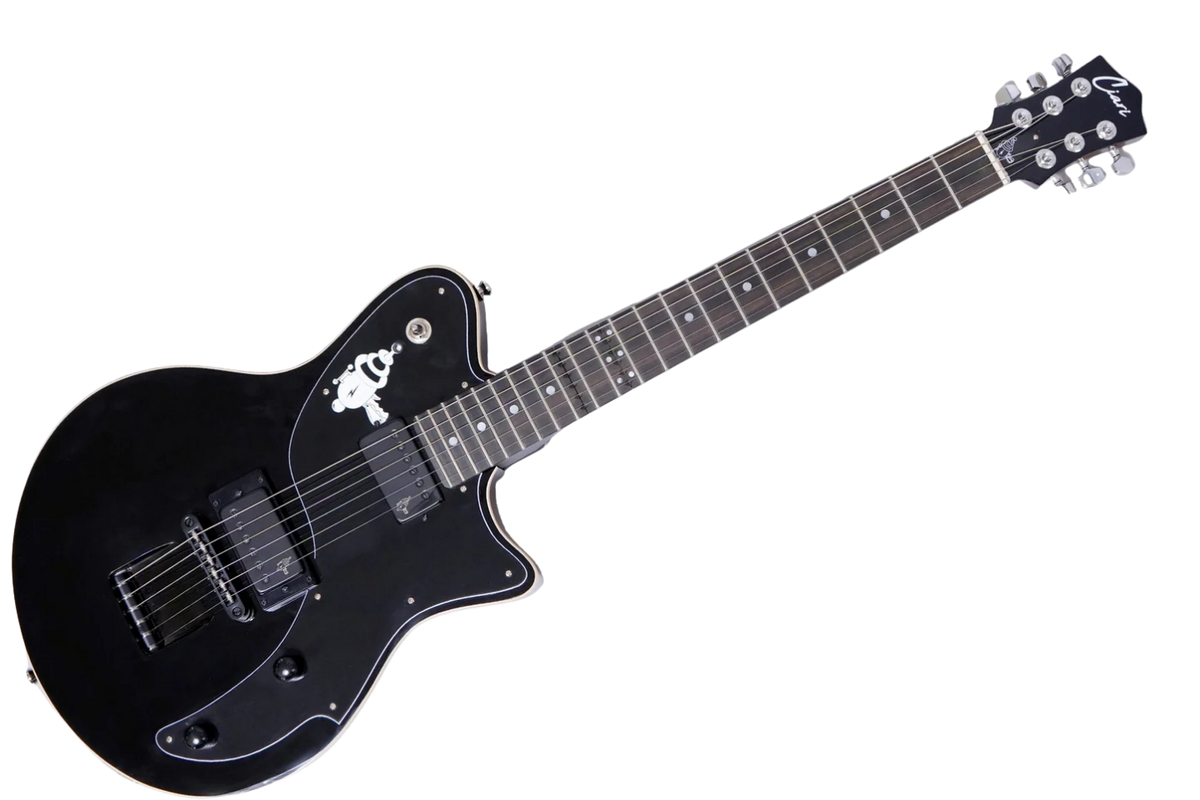

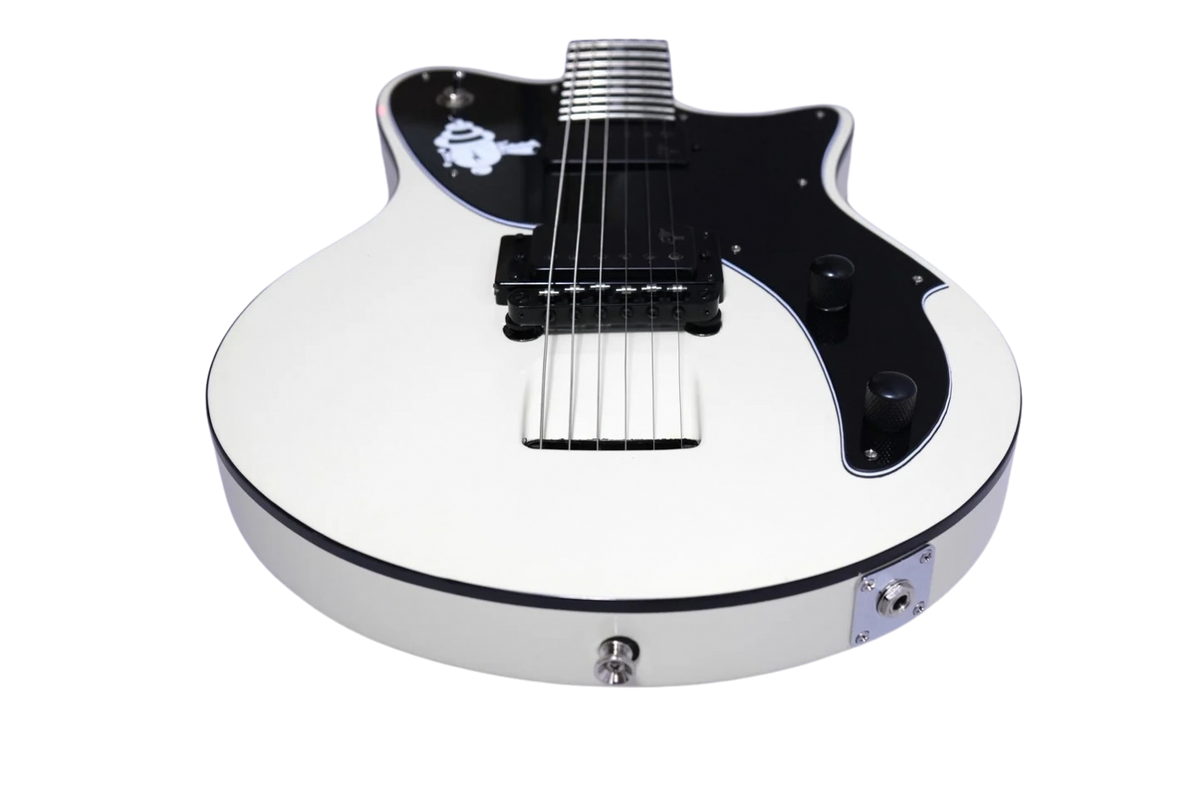

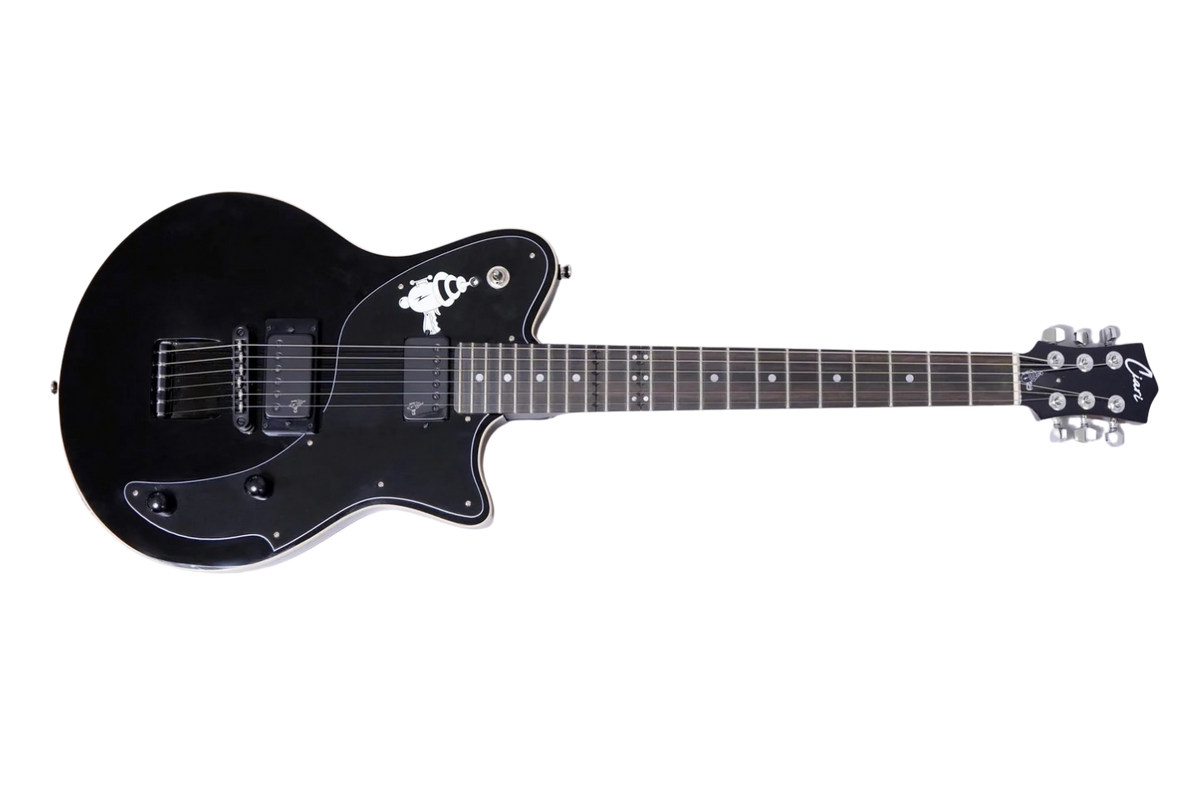

Available in Jet Black Gloss and Olympic White Gloss, the Platinum’s modern design is as striking as it is functional, making it a standout choice for players who value both style and substance. Every detail reflects Steve Stevens’ uncompromising standards and dedication to pushing the boundaries of guitar design.

Key Features:

• Bare Knuckle Ray Gun pickups for bold, responsive sound.
• Coil-splitting capabilities for tonal flexibility.

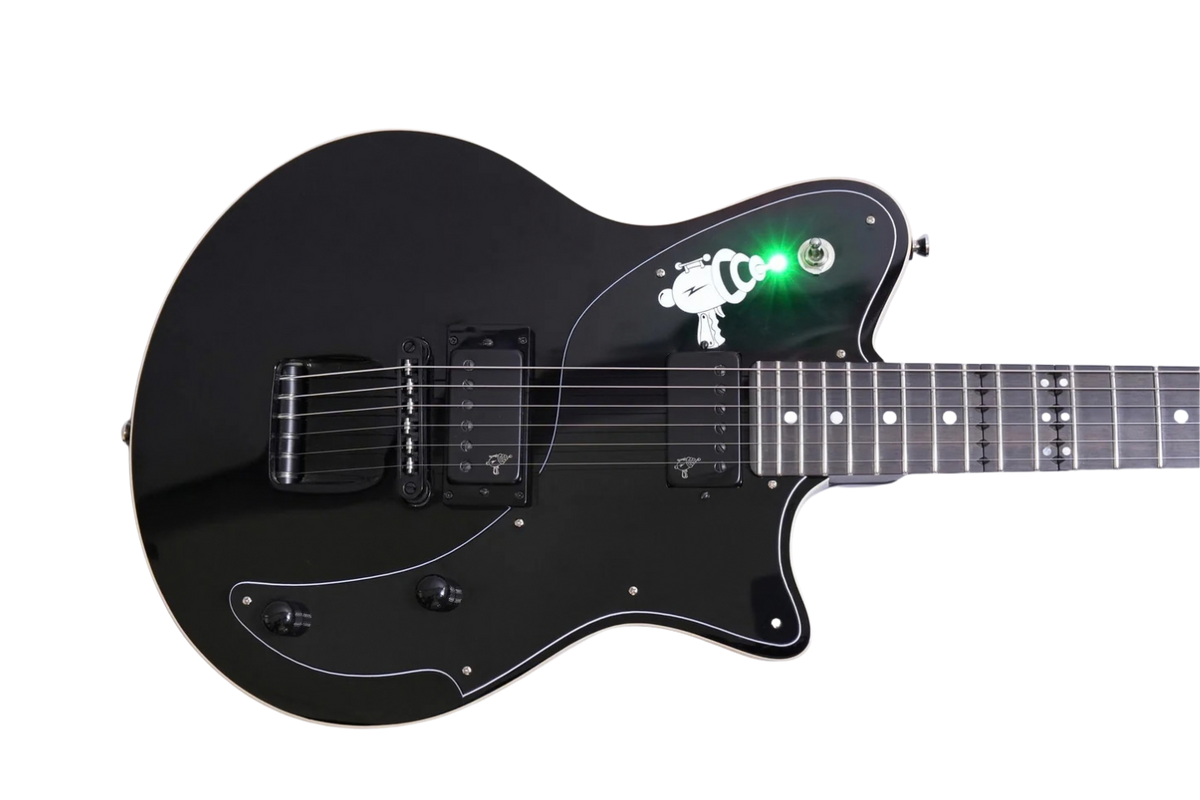

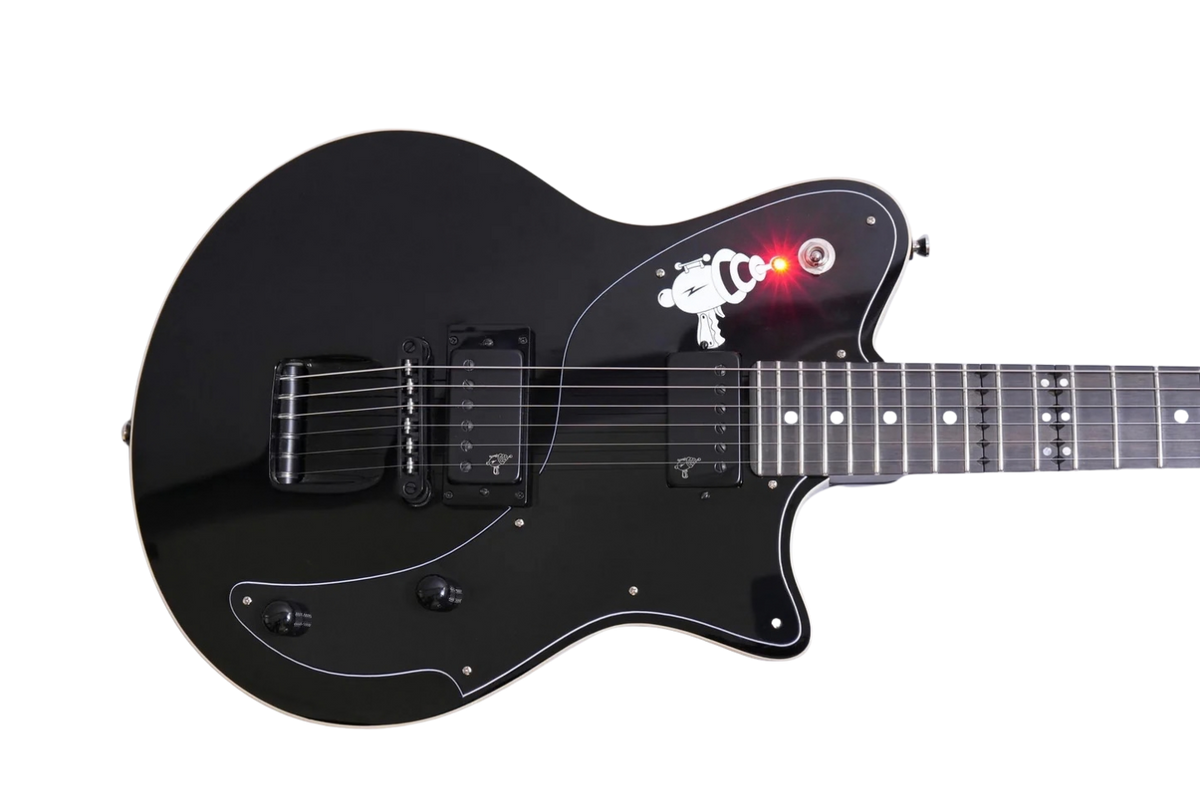

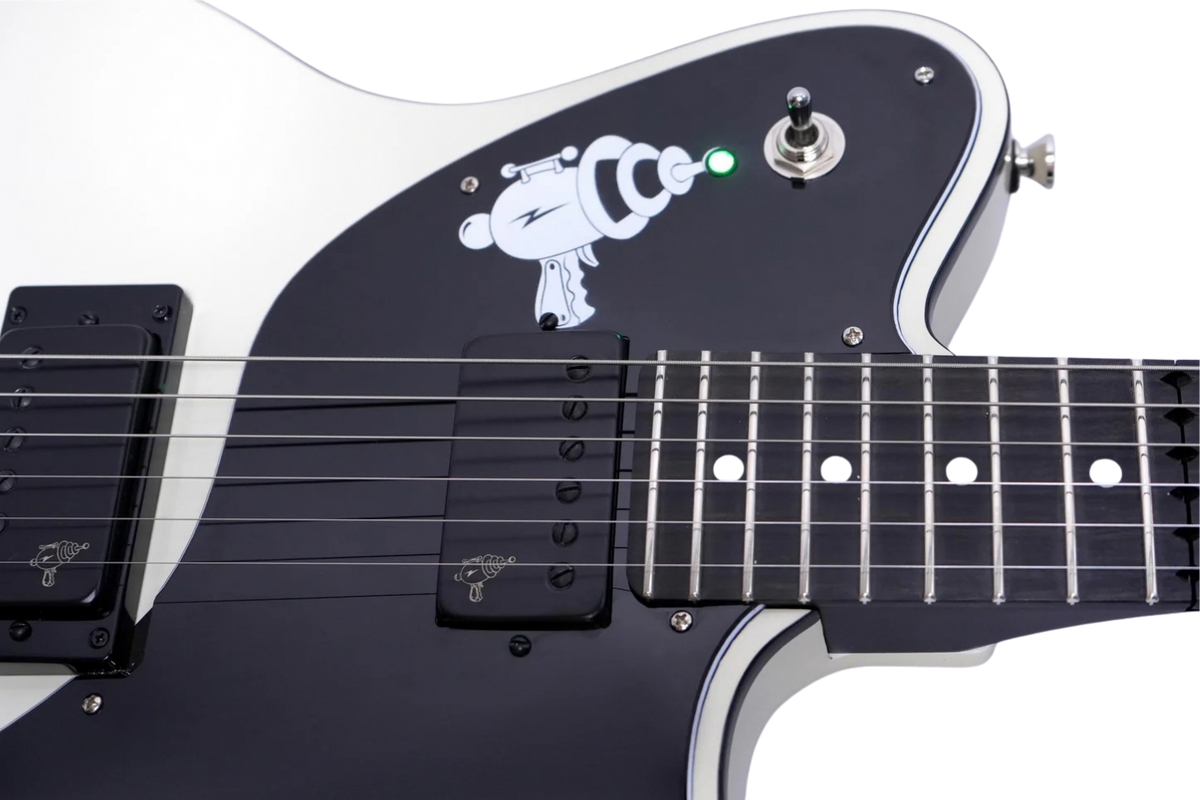

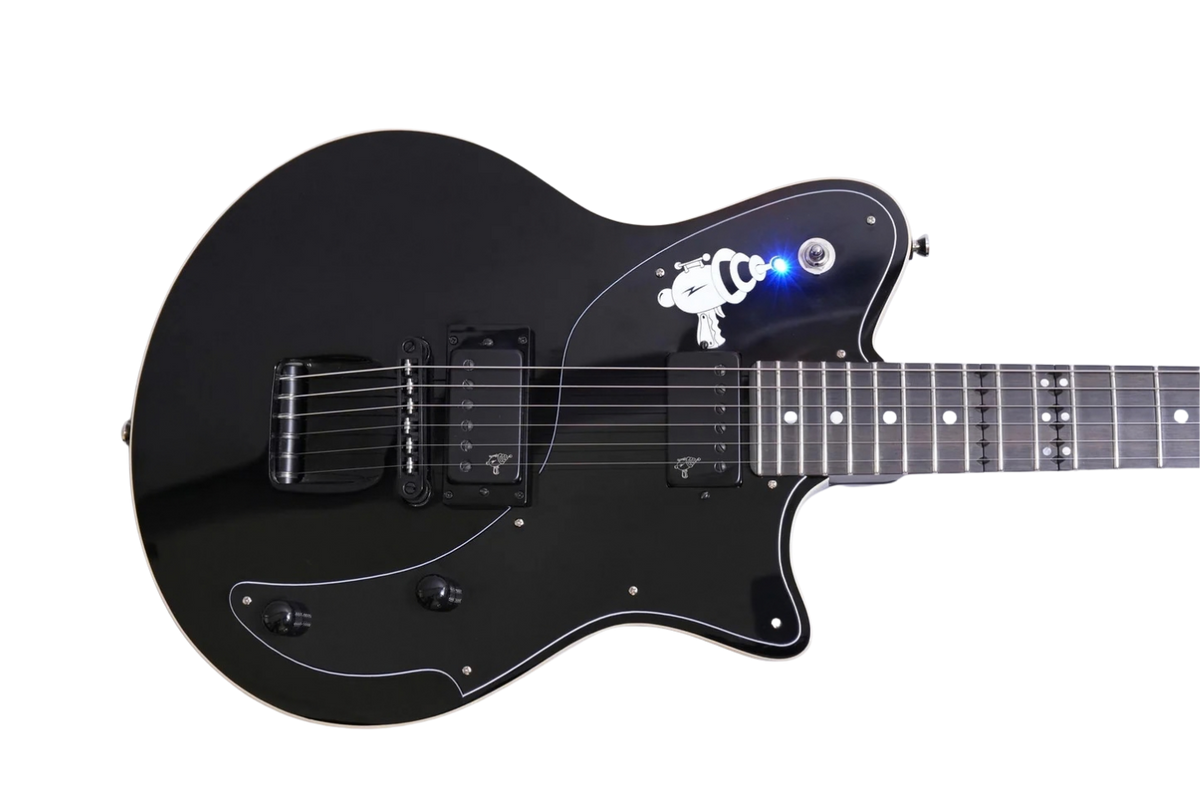

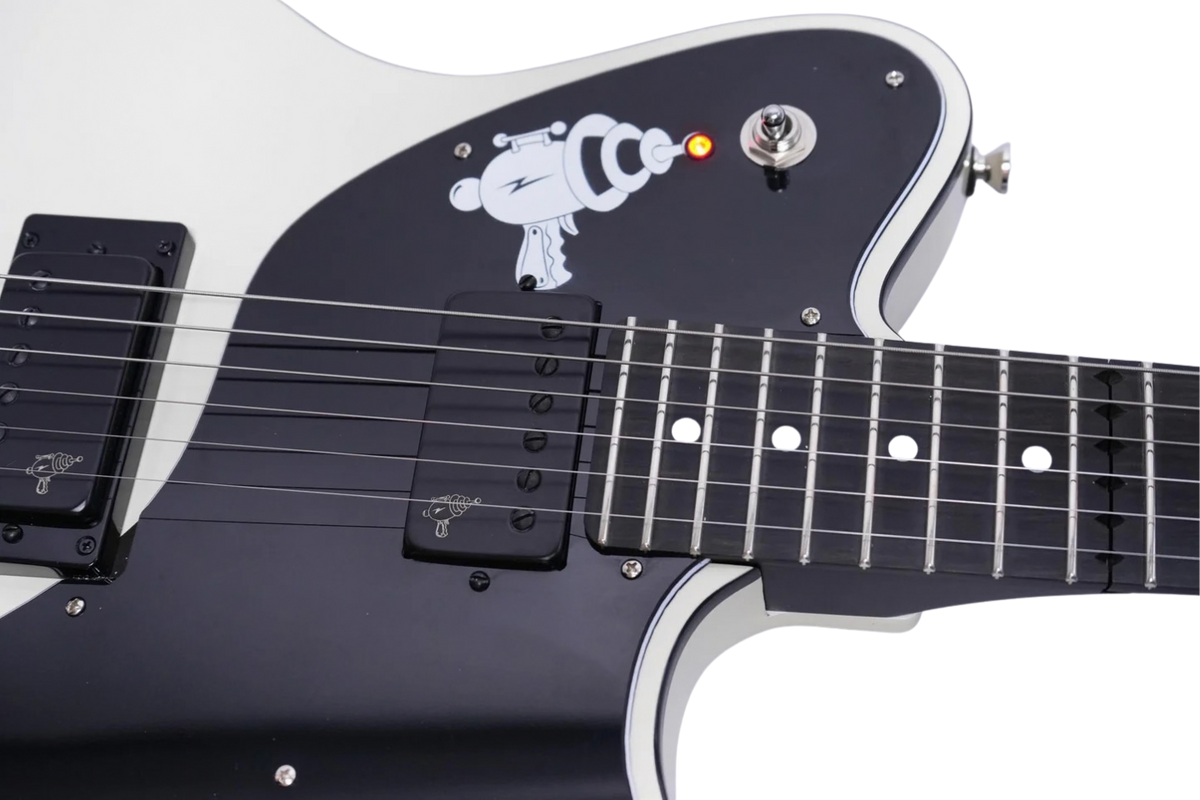

• LED selector switch with red, green, and blue accents.

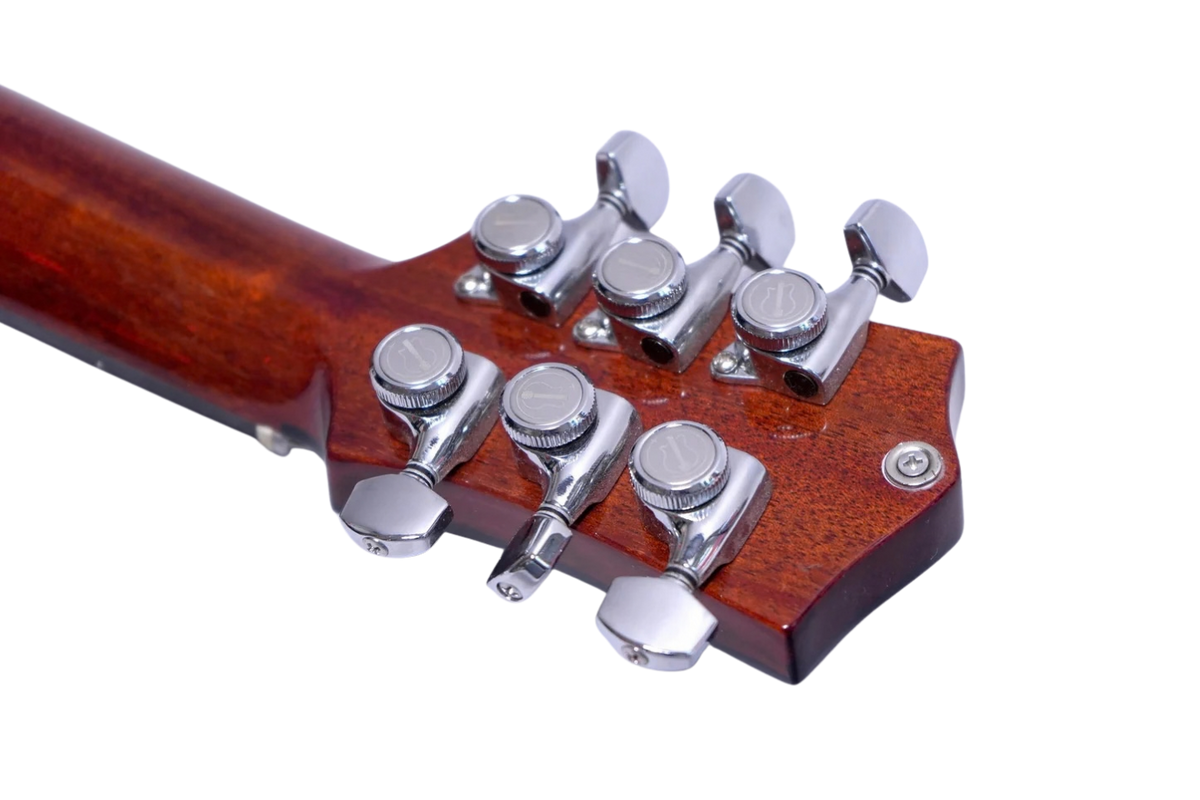

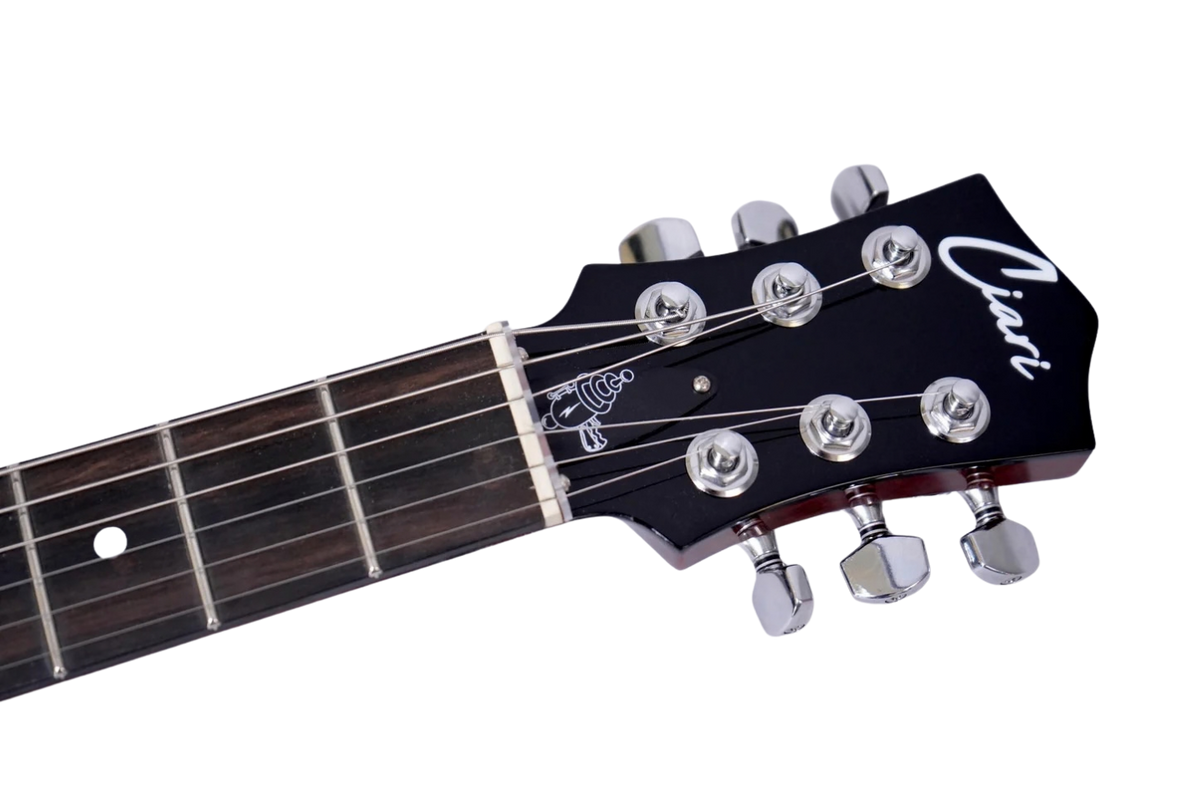

• Bezel tuners for reliable and precise tuning.
• Master tone and volume controls with pull-pot splits.

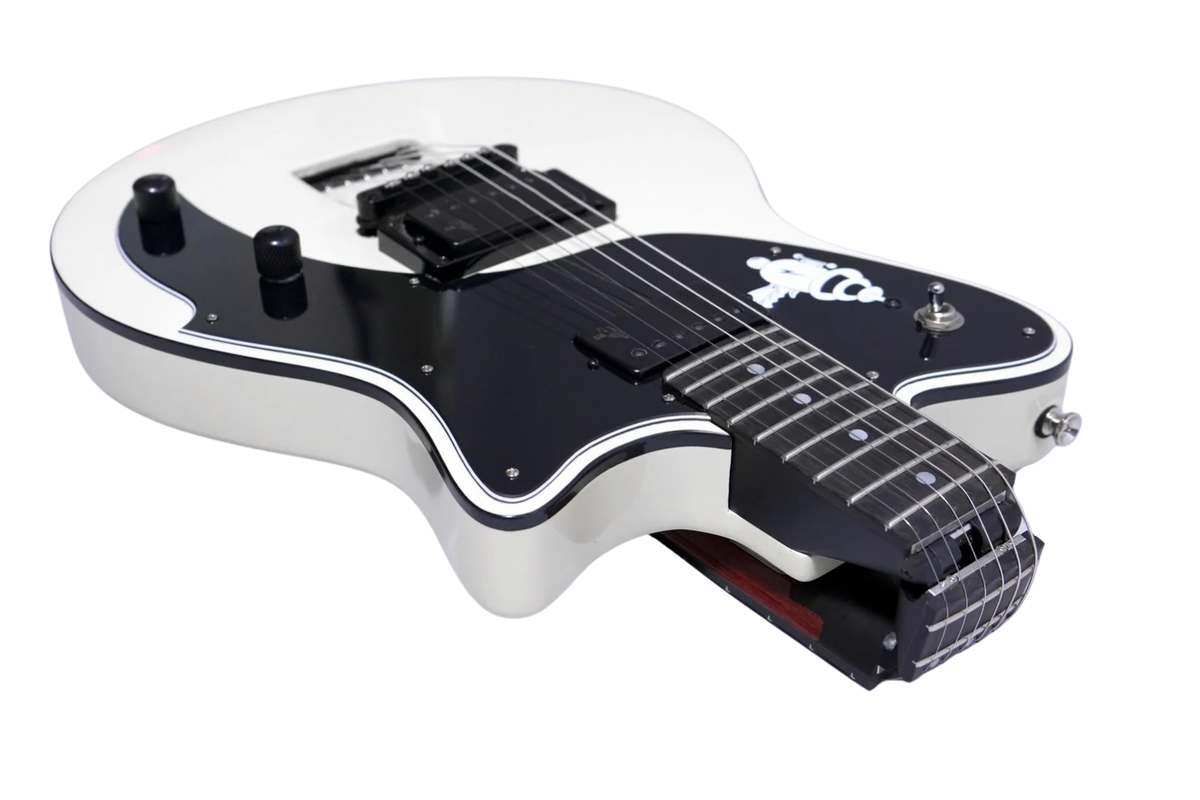

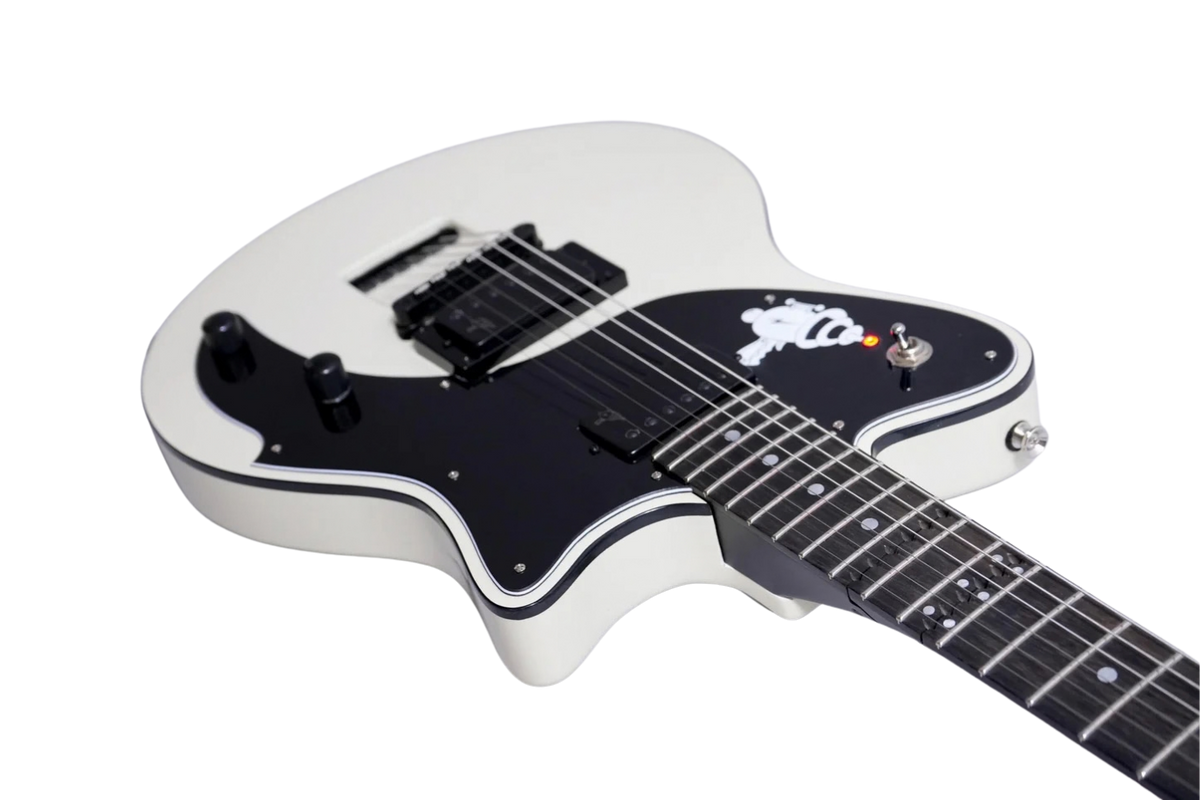

• Ray Gun-engraved pickguard for added style and character.
• Available in Jet Black Gloss and Olympic White Gloss.
• Dot inlays and sleek Ray Gun-inspired aesthetics.

Specifications:

• Body: Basswood, Weight Relieved, Gloss with Binding, Pink (Josie), White, Black
• Body Finish: Polyurethane
• Guitar Size: Full-sized
• Orientation: Right-handed or Left-handed
• Neck Type: Bolt-On
• Neck Scale: 24 ¾”
• Neck Radius: 12”
• Neck Shape: Shallow C
• Neck Width Nut: 1.7” (43.2 mm)
• Neck Width 12th: 2.1" (54.4 mm)
• Neck Length Overall: 23” (584 mm)
• Neck Thickness 1st: 0.86" (21.9 mm)
• Neck Thickness 12th: 0.96" (24.4 mm)
• Neck Edges: Softened
• Neck Material: Mahogany Wood
• Neck Finish: Clear Urethane

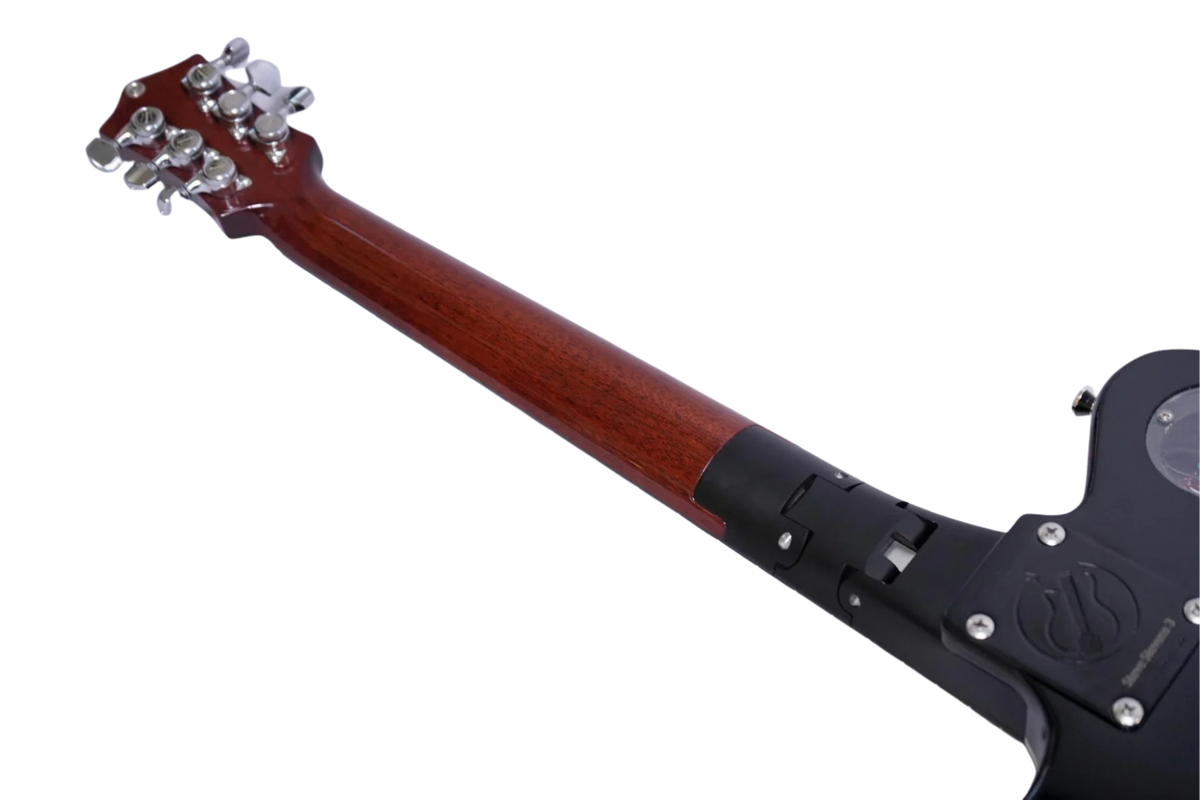

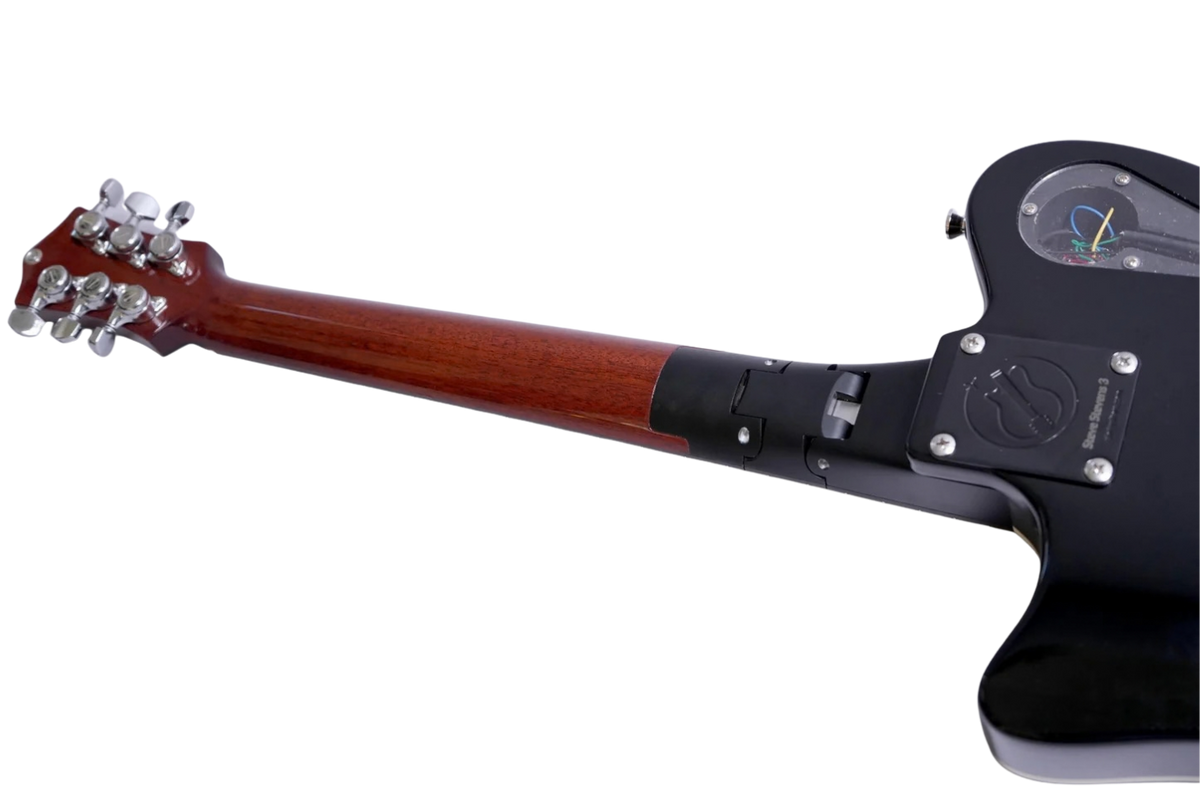

• Neck Hinge: Aircraft Aluminum
• Hinge Finish: Black Anodized
• Fretboard Material: Ebony Wood
• Fretboard Inlays: Pearloid Dot
• Fretboard Length: 18"
• Number of Frets: 22
• Fret Size: Medium Jumbo
• Fret Material: Nickel-Silver

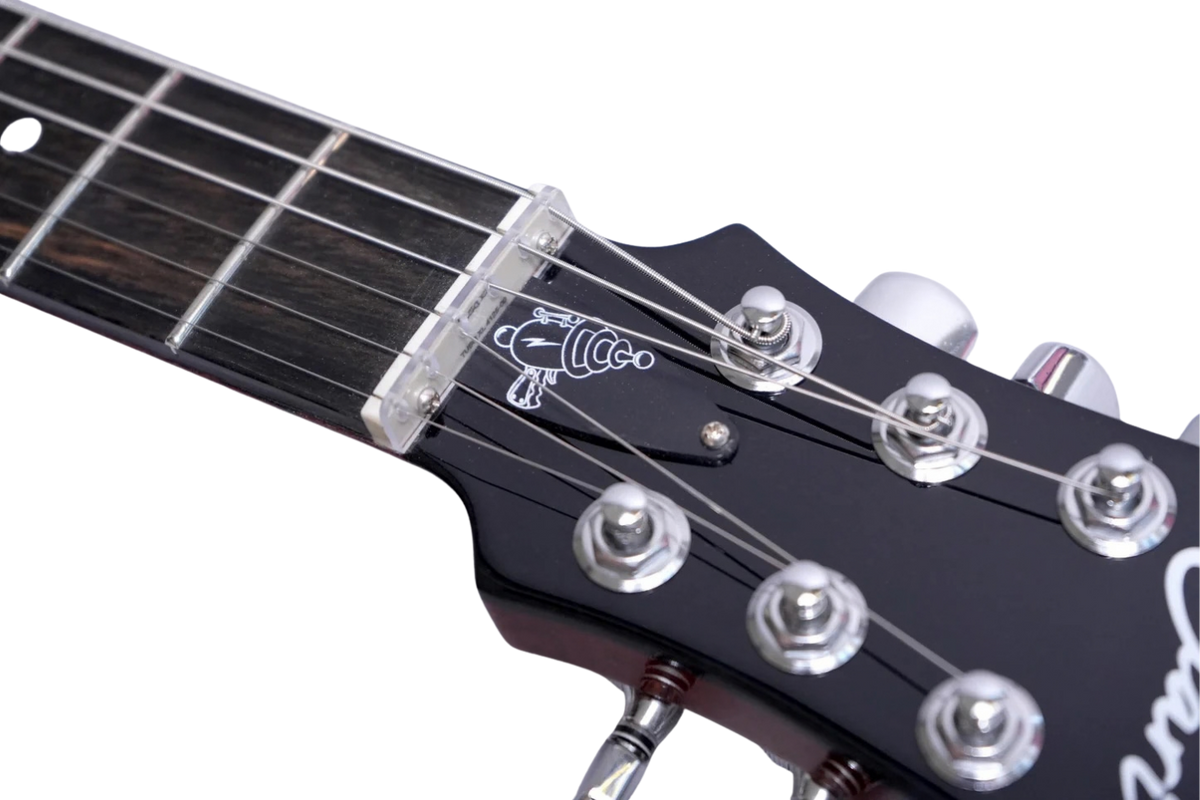

• Nut Material: TUSQ - Graph Tech
• Truss Rod: Yes

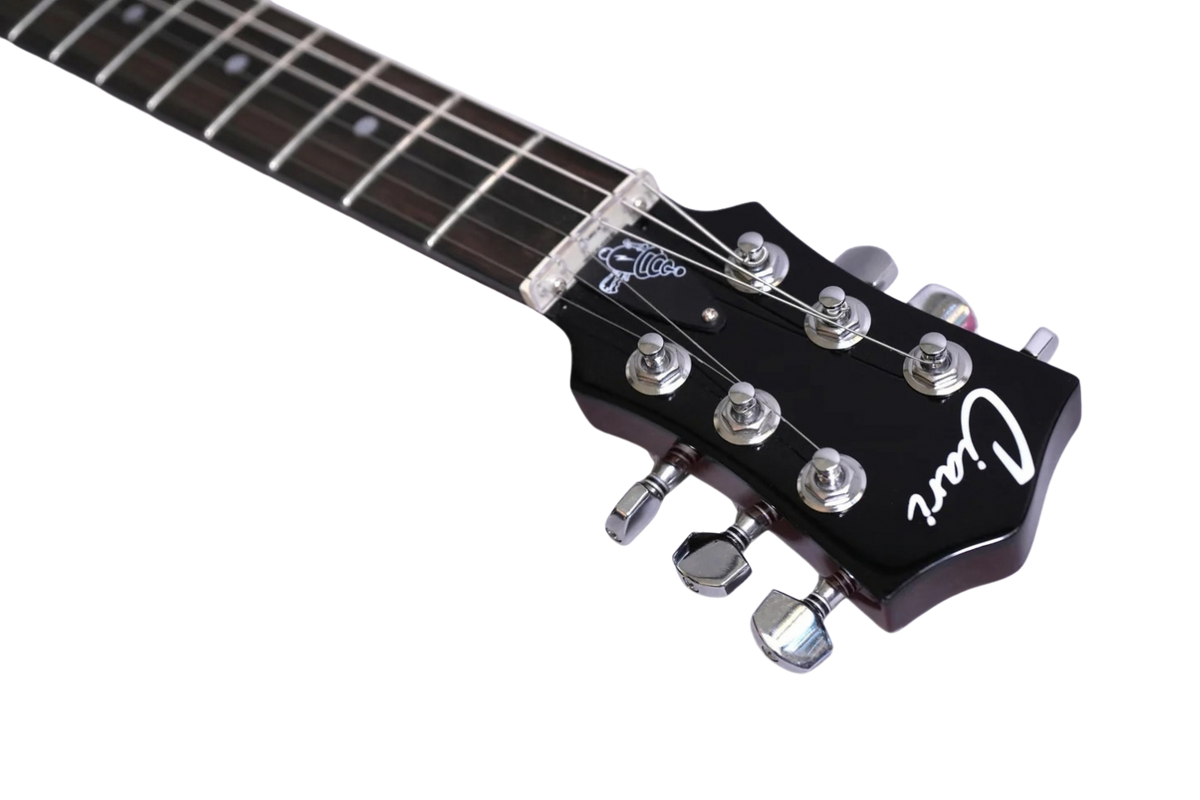

• Headstock: Formica Veneer

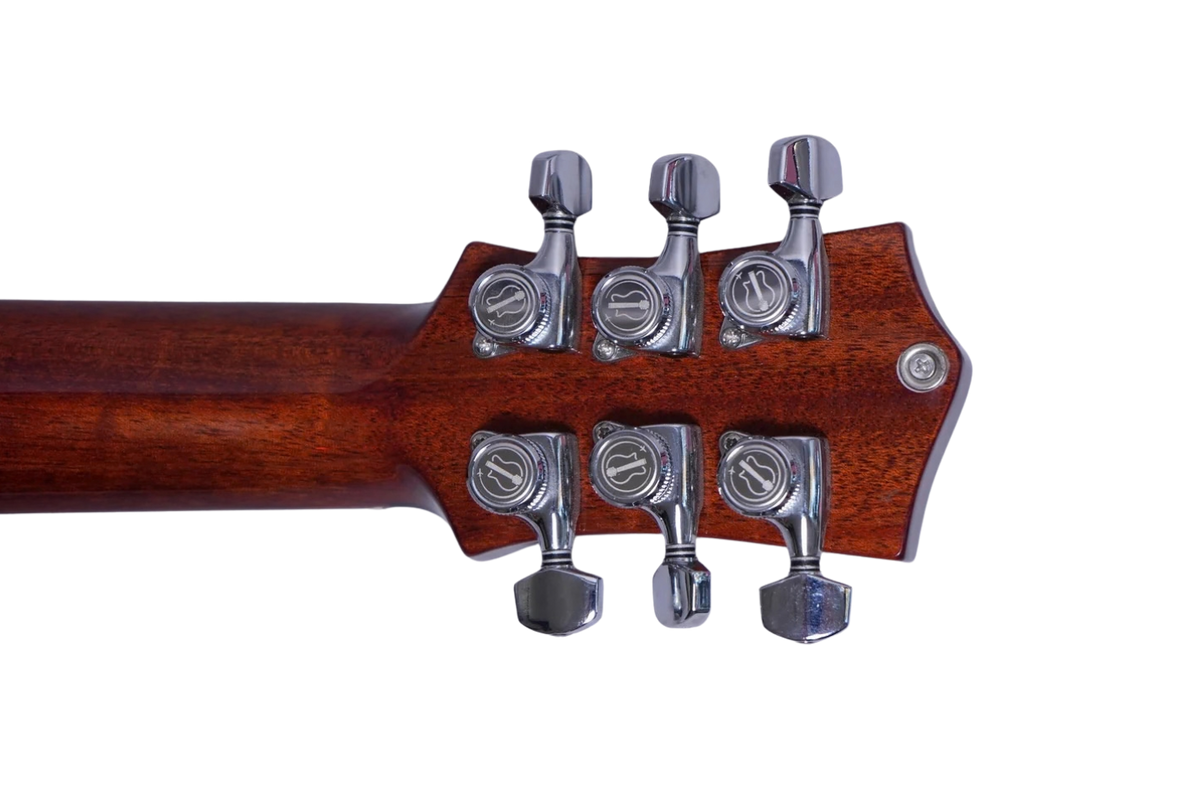

• Tuners: Locking, Chrome, 3x3
• Pickups: Black Bareknuckle w/Ray Gun Humbuckers
• Neck Pickup: Bareknuckle Rebel Yell Humbucker (8.1 kΩ)
• Bridge Pickup: Bareknuckle Rebel Yell Humbucker (14.4 kΩ)
• Magnet Type: Alnico 5
• Pickup Covers: Nickel
• Pickup Type: Passive
• Pickup Switch: 3-Way
• Electronics: Pull Pots w/Coil Splits
• Knob Material: Knurled Aluminum
• Pot Resistance: 500 kΩ
• Pot Type: CTS Audio Taper
• Bridge: Nashville Tune-o-Matic Roller (Black Finish)
• Adjustable Bridge: Height & Intonation
• Tail Piece Material: Aluminum

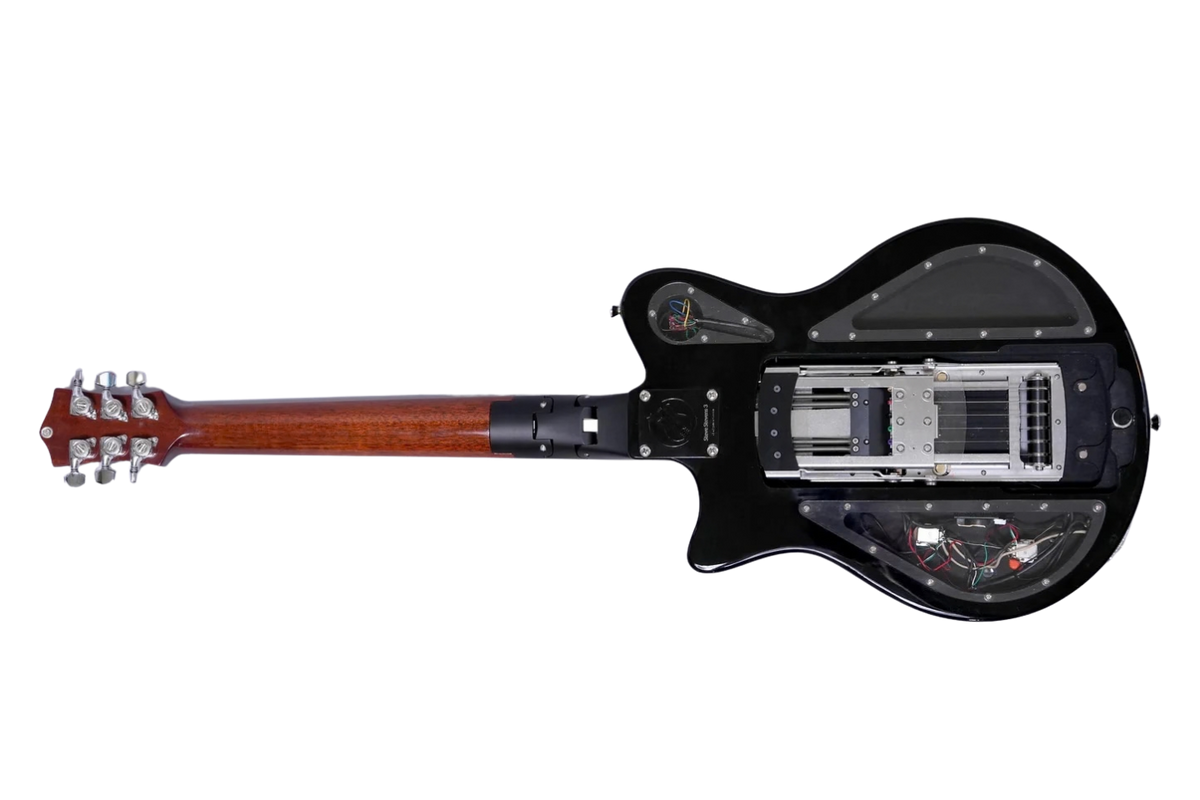

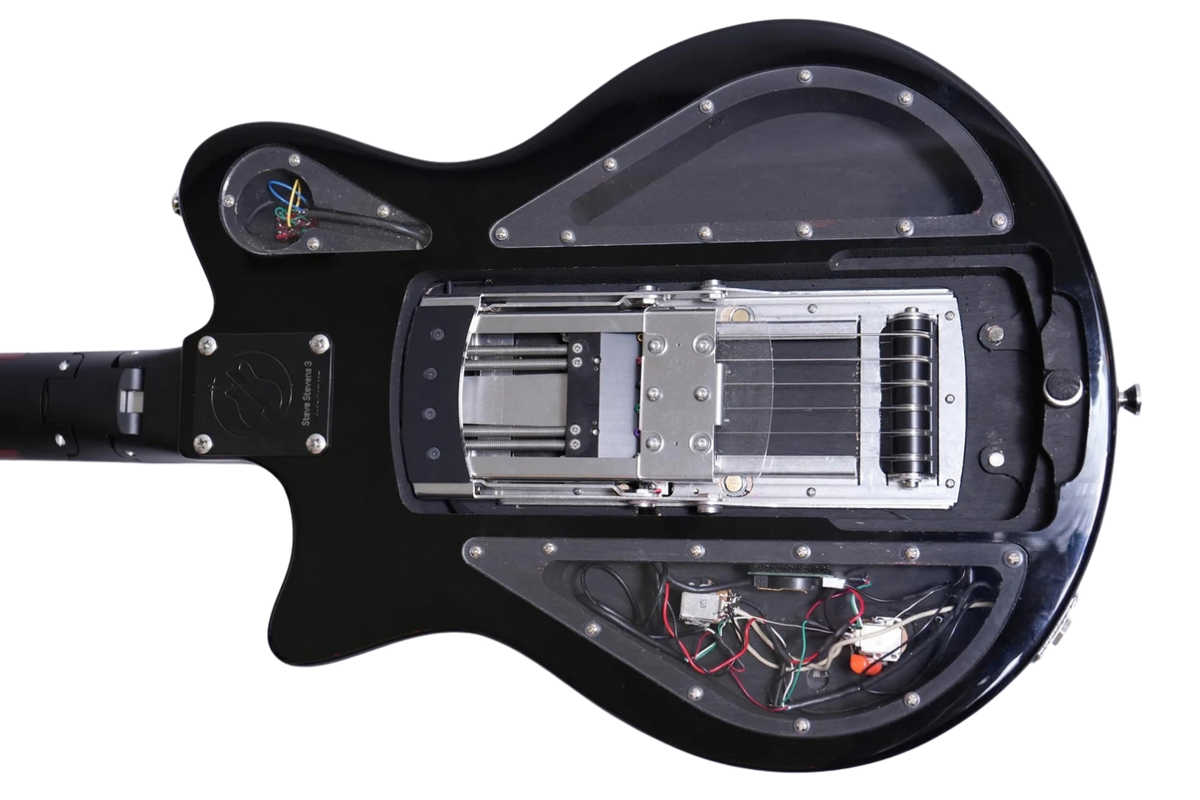

• Tail Piece Type: Custom Actuator, Floating
• Folded String Tension: 3 lbs
• String Management: Yes

Weights & Dimensions

• Guitar: 7.9 lbs ± 0.4 (3.6 kg ± 0.2)
• Guitar + Travel Bag: 8.9 lbs ± 0.5 (4.0 kg ± 0.3)
• Guitar + Bag + Backpack: 10.9 lbs ± 0.5 (4.9 kg ± 0.3)
• Guitar Length: 36.1" (916 mm)

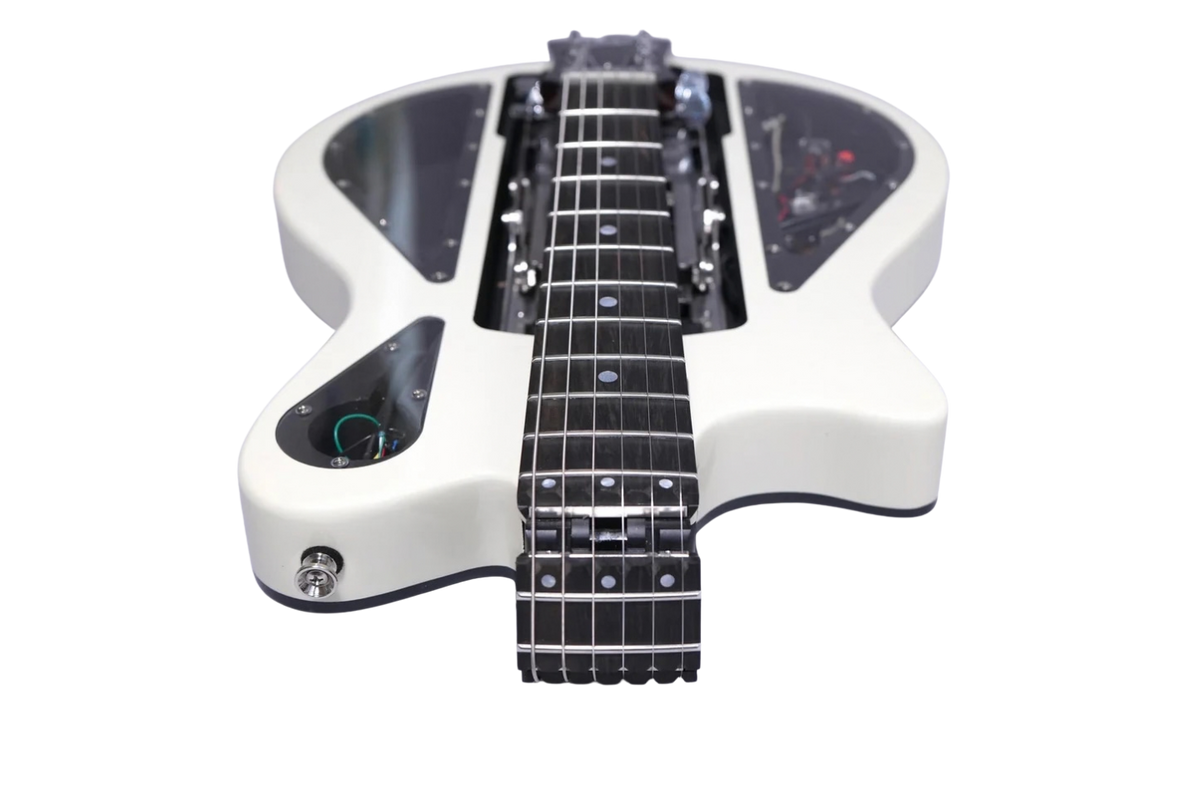

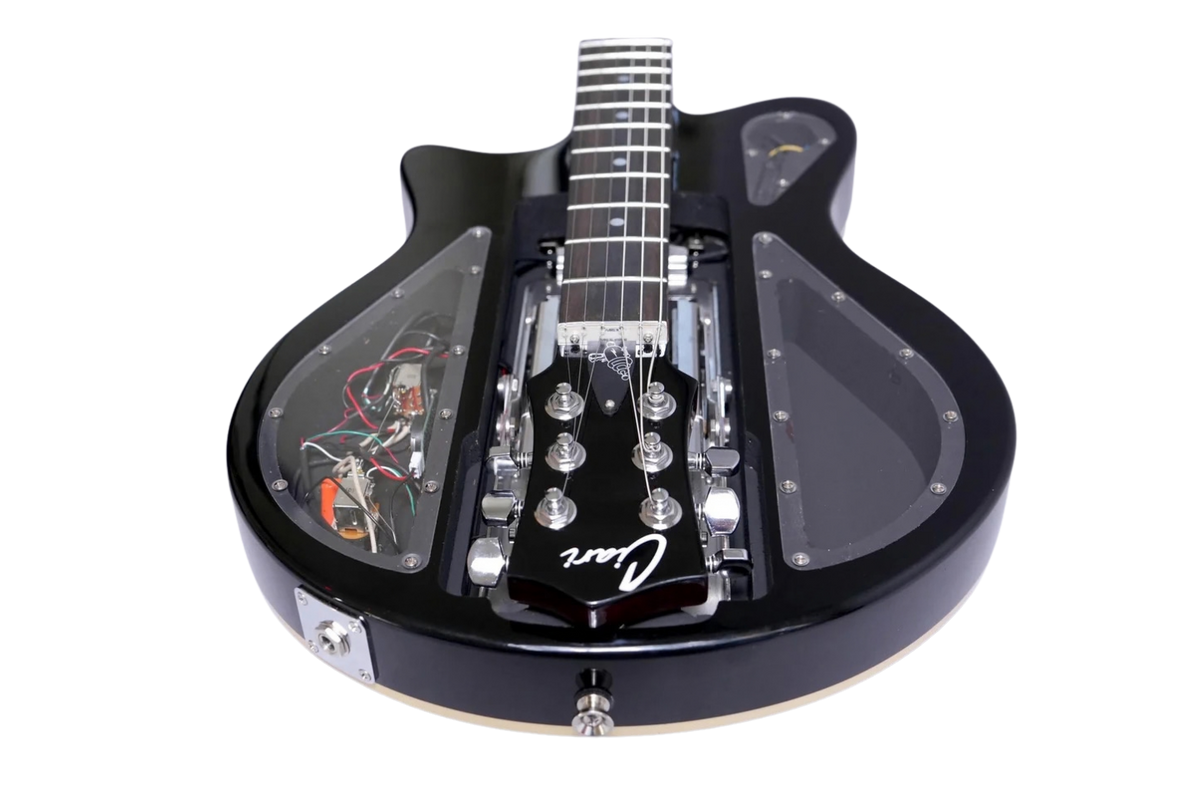

• Folded Length: 18.5" (470 mm)
• Guitar Depth: 1.75"
• Guitar Body Width: 12.6" (321 mm)

Factory Setup

• PLEK Machined: Yes
• Strings: Di’Addario NYXL 10-46
• String Height: 4/64” (1.25 mm)

Included Accessories

• Truss Rod Allen Key
• Bridge Allen Key
• Owner’s Manual
• Quilted Travel Bag

Whether you’re performing on stage, recording in the studio, or practicing at home, the Ascender Platinum offers exceptional craftsmanship, inspiring tone, and unmatched versatility to elevate every playing experience.
